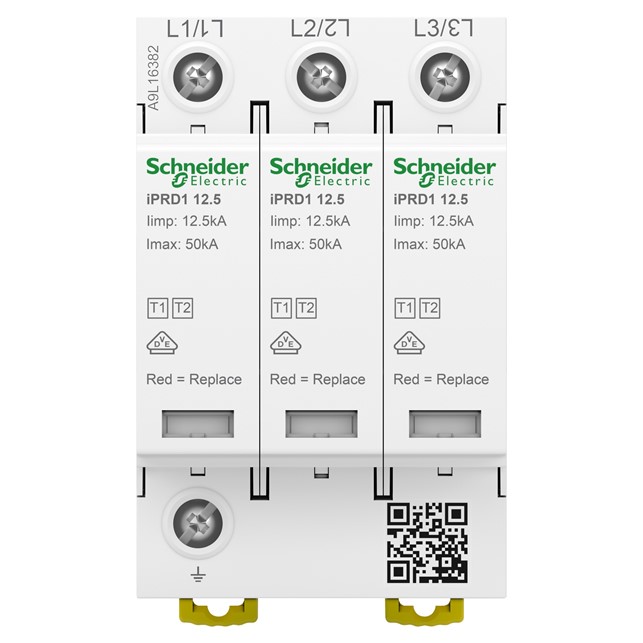

Schneider Modular surge arrester, Acti9 iPRD1 12.5, 3 P, 350 V (A9L16382)
Rp7.038.521
Deskripsi
Spesifikasi A9L16382
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iPRD1 |
| Product or component type | Surge arrester |
| device short name | IPRD1 12.5 |
| Device application | Distribution |
| Standards | EN 61643-11:2012 IEC 61643-11:2011 |
| Quality labels | CE EAC VDE |
| Poles description | 3P |
| Remote signalling | With |
| Signal contacts composition | 1 SD (1 C/O) |
| Surge arrester type | Electrical distribution network |
| Earthing system | TN-C |
| surge arrester class type | Type 1 + 2 |
|---|---|
| Surge arrester technology | MOV + GDT |
| [Ue] rated operational voltage | 230/400 V AC (+/- 10 %) at 50…60 Hz |
| [In] nominal discharge current | 20 kA |
| [Imax] maximum discharge current | 50 kA |
| [Iimp] impulse current | Common mode: 12.5 kA L/PE |
| [Uc] maximum continuous operating voltage | Common mode: 350 V L/PE |
| Maximum [Up] voltage protection level | <1.5 kV type 1 + 2 |
| Residual current | 0.9 mA L/PE |
| [Ut] temporary overvoltage | 442 V L/PE 120 min withstand 1455 V L/PE 200 ms safe failure mode |
| Disconnector device type | Associated fuse gG 160 A 120 kA standard Associated circuit breaker Compact NSX160E 80 A 25 kA standard |
| Local signalling | Operating: mechanical indicator (white) End of life: mechanical indicator (red) |
| Mounting mode | Clip-on (DIN rail) |
| 9 mm pitches | 6 |
| Height | 89 mm |
| Width | 54 mm |
| Depth | 69 mm |
| Product weight | 486 g |
| Colour | White (RAL 9003) |
| Material | PA6 |
| Connections – terminals | Tunnel type terminal (phase) 10…25 mm² flexible Tunnel type terminal (phase) 10…35 mm² rigid Tunnel type terminal (earth) 16…25 mm² flexible Tunnel type terminal (earth) 16…35 mm² rigid |
| Wire stripping length | 14 mm |
| Tightening torque | 3.5 N.m |
